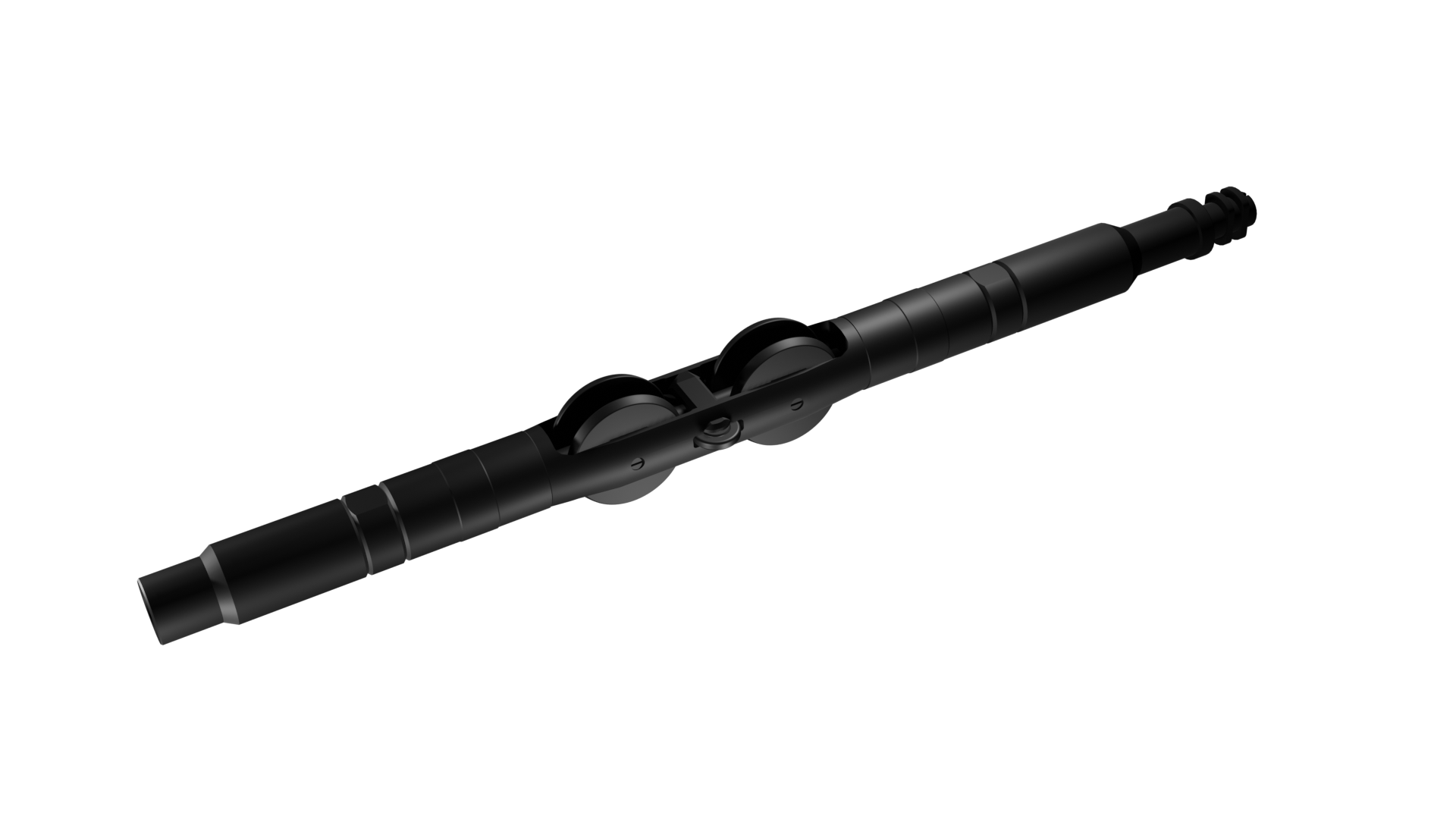

Name: GARD U-line WR02 Cased Hole Roller
Brand: GARD U-line

Gard U-line cased-hole rollers(WR01/WR02) are one of the world’s leading technology for a Universal Intervention Tool to convey various tool strings to high-deviation targets using slick line and e-line services.

WR01 U-line Brochure WR02 U-line Brochure Case Studies

Countries

50+

Completed Operations

Years of Technology Deployment

Frequent Roller Seizing From Debris or Rust Buildup Inside Casing?

The GARD U-line chassis can be easily converted to multiple size and style combinations through the use of a cost-effective Conversion Kit.

WR01 and WR02 Series possess anti-debris sealed bearings that prevent scale, rust, and solids from entering the bearing and causing roller seizure.
Possess Anti-Debris Roller Geometry patented roller profiles designed to shed solids instead of trapping them, keeping rotation smooth in all operations.

U-LINE CATALOGUE

Experiencing Jamming or Sticking in Tight Spots?

GARD U-line Roller Series (WR01/WR02) is the latest generation Roller Technology, designed to safely convey wireline tool string to highly deviated targets within a well bore.

Possess High-Capacity Wheeled Carriages for smooth rolling motion in high-deviation wells reducing drag significantly
Possess low-Friction, wear-resistant rollers to minimise torque and drag
Modular dual e-line & slick-line function
The strongest, most flexible, mechanical roller on the market

Frequent Difficulty Reaching Target Depth in High-Deviation Wells?

Gard U-line cased-hole rollers(WR01/WR02) are one of the world’s leading technology for aUniversal Intervention Tool to convey various tool strings to high-deviation targets using slick line and e-line services.

90% Reduction in OPEX
100% Reduction in risk of Fish
75% Reduction in Components
Interchangeable wheels, hole size dependent

CASE STUDIES

U-line Cased Hole Rollers

Watch the short video to learn about the benefits of our Distinguished Cased Hole U-line Series:

Field modifiable in 20 minutes
Modular dual e-line & slick-line function
The strongest, most flexible, mechanical roller on the market
Compatible with all existing downhole intervention technologies
Incorporating the lowest friction co-efficient Validated!

Applications

Find out the applications of our Distinguished Cased Hole U-line Series:

E-line
Slick-line
Fibre Optic
Coiled Tubing
Digital slick-line

Ease of Use

Industry distinctions of our Distinguished Cased Hole U-line Series:

Modular
Rugged
Universal
Simple & Reliable
Low maintenance

WR01 In Focus

Excellent Performance of GARD U-line Products

GARD U-line technology is proven for conveying toolstrings in very challenging well profiles with high deviations up to 86° and at depths reaching 20,000 ft.

GARD U-line technology redefines industry limits by enabling reliable toolstring conveyance in highly challenging well conditions.

Learn More

WR01 IN FOCUS

Flagship 360° Orientation Feature

GARD U-line technology features a 360° swivel orientation setting for the logging tool sensors and samplers, allowing to set the logging tool at any custom angle required.

Learn More

WR02 IN FOCUS

Lowest Friction Coefficient

Incorporating a very low friction coefficient wheel design, GARD U-line significantly reduces drag, limits low-side contact, and minimizes the risk of sticking during operations.

Learn More

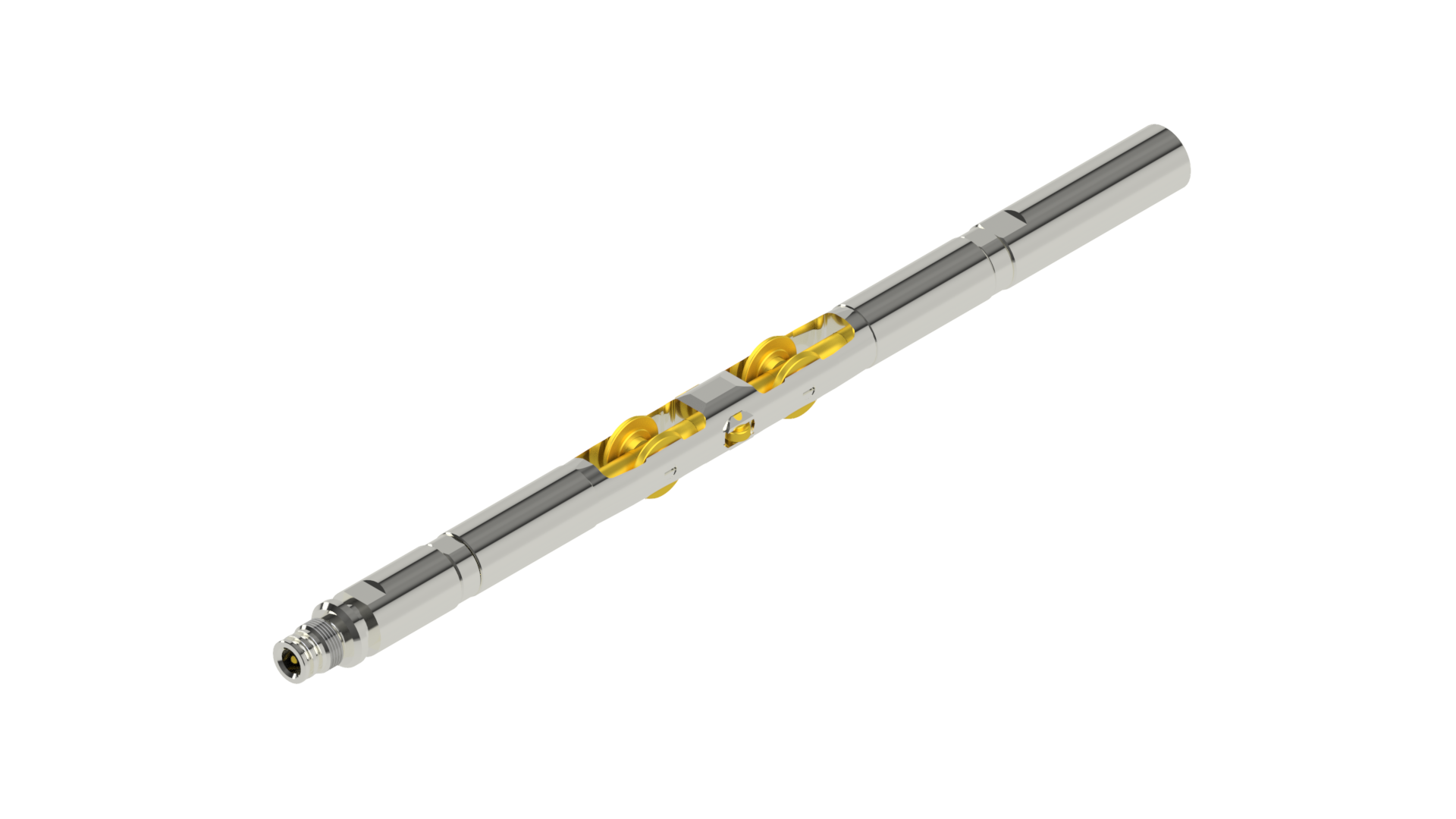

WR01 Series

Wheel Diameter Range – Connections Matrix

Wheel Diameter	WR01 Series
	CONNECTIONS
	15/16 SR		1 1/2QLS		GO A		SONDEX		SLB MONO
	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT
	in	lbs	in	lbs	in	lbs	in	lbs	in	lbs
1800.WR01	27.9	12.34	30.2	13.07	27.9	12.59	26.09	11.88	26.57	13.16
1900.WR01	27.9	13.52	30.2	14.24	27.9	13.77	26.09	13.06	26.57	14.33
2000.WR01	27.9	13.60	30.2	14.32	27.9	13.85	26.09	13.14	26.57	14.41
2125.WR01	27.9	13.73	30.2	14.45	27.9	13.97	26.09	13.26	26.57	14.54
2300.WR01	27.9	13.89	30.2	14.61	27.9	14.13	26.09	13.42	26.57	14.70

Comparison (pinned rows)

No rows pinned yet. Tick “Compare” on any row above.

WR02 Series

Wheel Diameter Range – Connections Matrix

Wheel Diameter	WR02 Series
	CONNECTIONS*
	1-1/16 SR		1 7/8″ QLS		GO A		SONDEX		A3		A2		SLB MONO
	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT	MUL	WEIGHT
	in	lbs	in	lbs	in	lbs	in	lbs	in	lbs	in	lbs	in	lbs
2600.WR02	31.2	28.22	34.41	29.95	31.2	27.97	29.09	26.57	35.95	30.01	39.21	20.34	29.61	26.92
2700.WR02	31.2	28.59	34.41	30.32	31.2	28.34	29.09	26.94	35.95	30.38	39.21	20.71	29.61	27.29
2750.WR02	31.2	28.78	34.41	30.50	31.2	28.53	29.09	27.13	35.95	30.57	39.21	20.89	29.61	27.48
2900.WR02	31.2	29.40	34.41	31.12	31.2	29.15	29.09	27.75	35.95	31.19	39.21	21.51	29.61	28.10
3250.WR02	31.2	29.67	34.41	32.52	31.2	30.55	29.09	29.15	35.95	32.59	39.21	22.91	29.61	29.50
3500.WR02	31.2	31.99	34.41	33.71	31.2	31.74	29.09	30.34	35.95	33.78	39.21	24.10	29.61	30.69
3600.WR02	31.2	28.37	34.41	34.14	31.2	32.16	29.09	30.76	35.95	34.20	39.21	24.53	29.61	31.11
3650.WR02	31.2	32.63	34.41	34.35	31.2	32.38	29.09	30.98	35.95	34.42	39.21	24.74	29.61	31.33

Comparison (pinned rows)

No rows pinned yet. Tick “Compare” on any row above.

Note: New Specifications can be made to meet customer requirements.
